ƒ Wide operating temperature range -40..+105 °C

ƒ Also available with redundant electronics

ƒ Less power consumption ≤ 7 mA (single), ≤ 14 mA (redundant

ƒ Bushing or flange mounting

ƒ Ø6 mm shaft

ƒ Resolution nearly infinite

ƒ Sleeve bearing

ƒ Effective electrical angle of rotation ±45° (=90°)

ƒ 5 V supply voltage

ƒ Voltage output

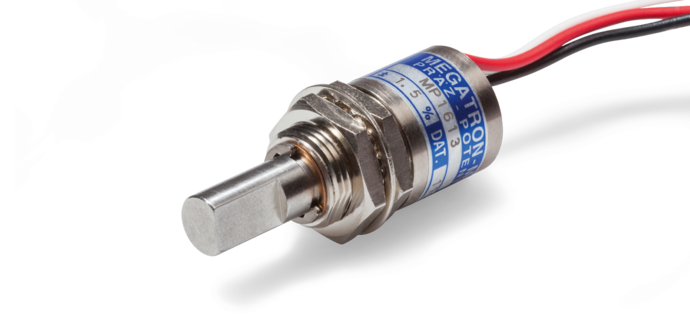

The MP1618 is particularly suitable in low-power applications and requirements for a large operating temperature range. The option with a redundant electronic makes it also from interest for applications with increased operational safety requirements. The installation via flange or bushing makes this rotary encoder compatible with a variety of installation situations.
